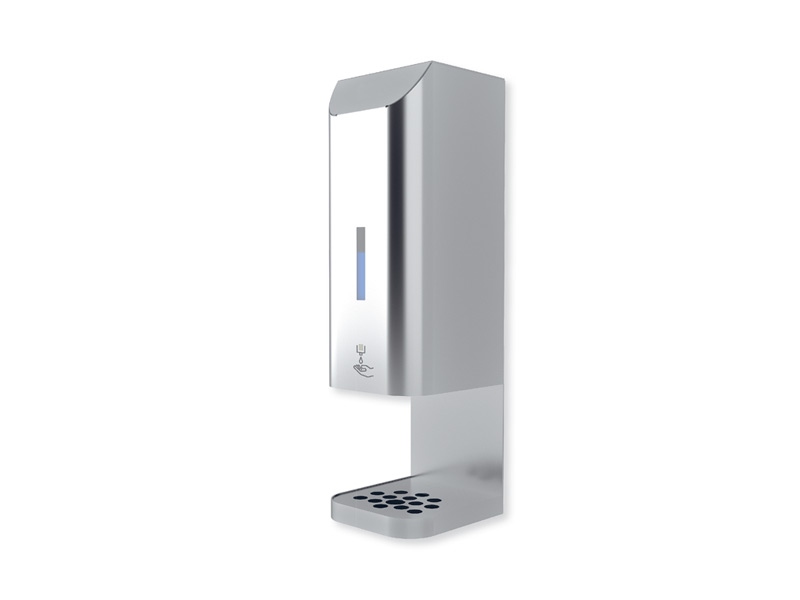

Non-contact disinfection dispensers

OED-UN-02

Order number:

Characteristics

• high level of hygiene and comfortable
• anti-vandal stainless steel construction
• simple operation and assembly
• 6V battery or 6V DC power supply
• parameter setting with the DO-5.1 remote control

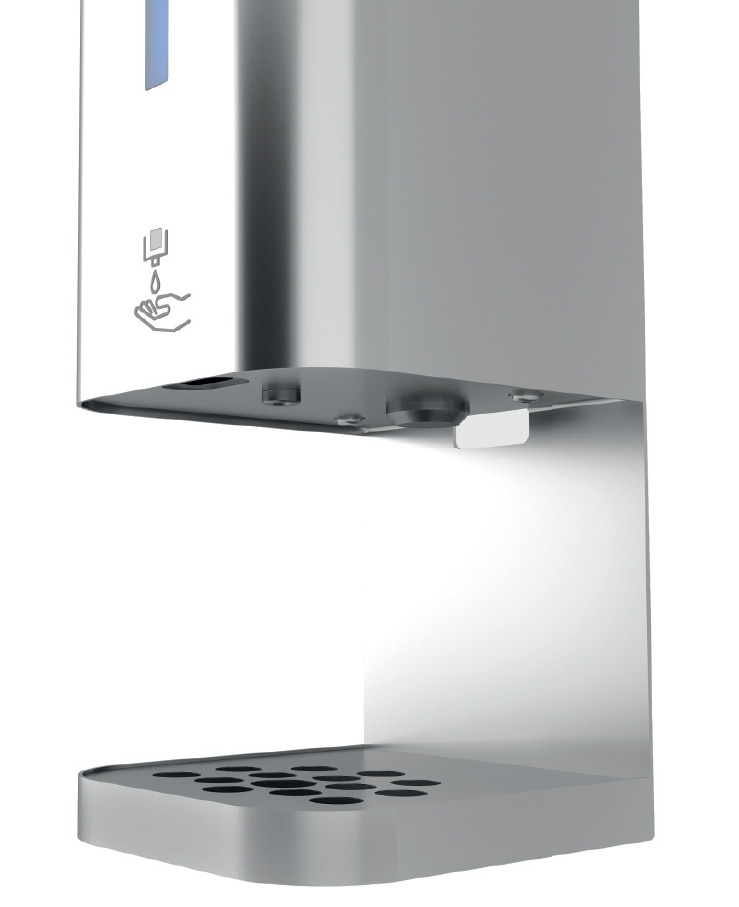

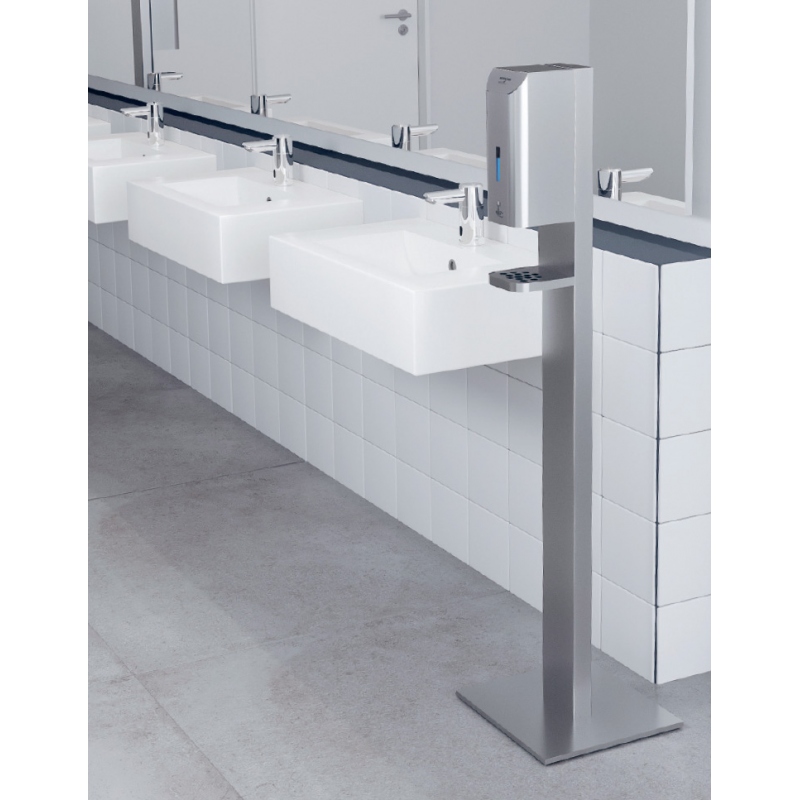

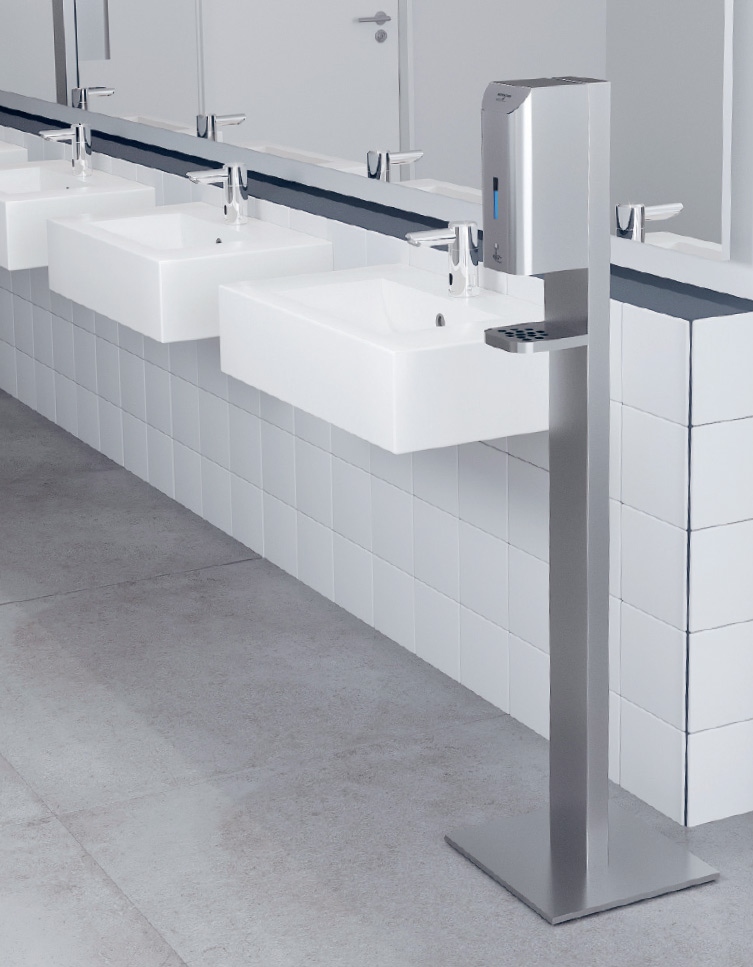

• drip tray and stainless steel stand in special accessories

Performance description

The dispenser is designed for touchless dosing of liquid soap or disinfectant. After bringing your hand in the scanning zone, the device dispenses one dose. The sensor range is approx. 6 cm. The preset dose lasts 0.75 sec, which corresponds to the volume of approx. 1 ml depending on the liquid viscosity. The device has a robust construction with a swivelling cover made of stainless steel external material, lockable with a key, with a locking sensor, also suitable for semi-public use.

Basic data

LED signalling:

• hand removal (2 x flash)
• low batteries (1 x flash, after 2 seconds)
• discharged batteries (1 x flash every second until the battery is completely discharged)
• The amount of the liquid can be checked through the sight glass on the front cover.
• The product is factory set. Any parameter adjustments, such as sensor range, liquid flow time, automatic flush when not in use in order to prevent drying, device operation monitoring (time of use, number of cycles), can be made with the DO-5.1 remote control (special accessories).
• wall-mounted by means of screws and fasteners (included)

OED-UN-02 Order No. SE.23.00.03-000

power supply version, without power supply (optional special accessories). Tank volume 1.5 litre
